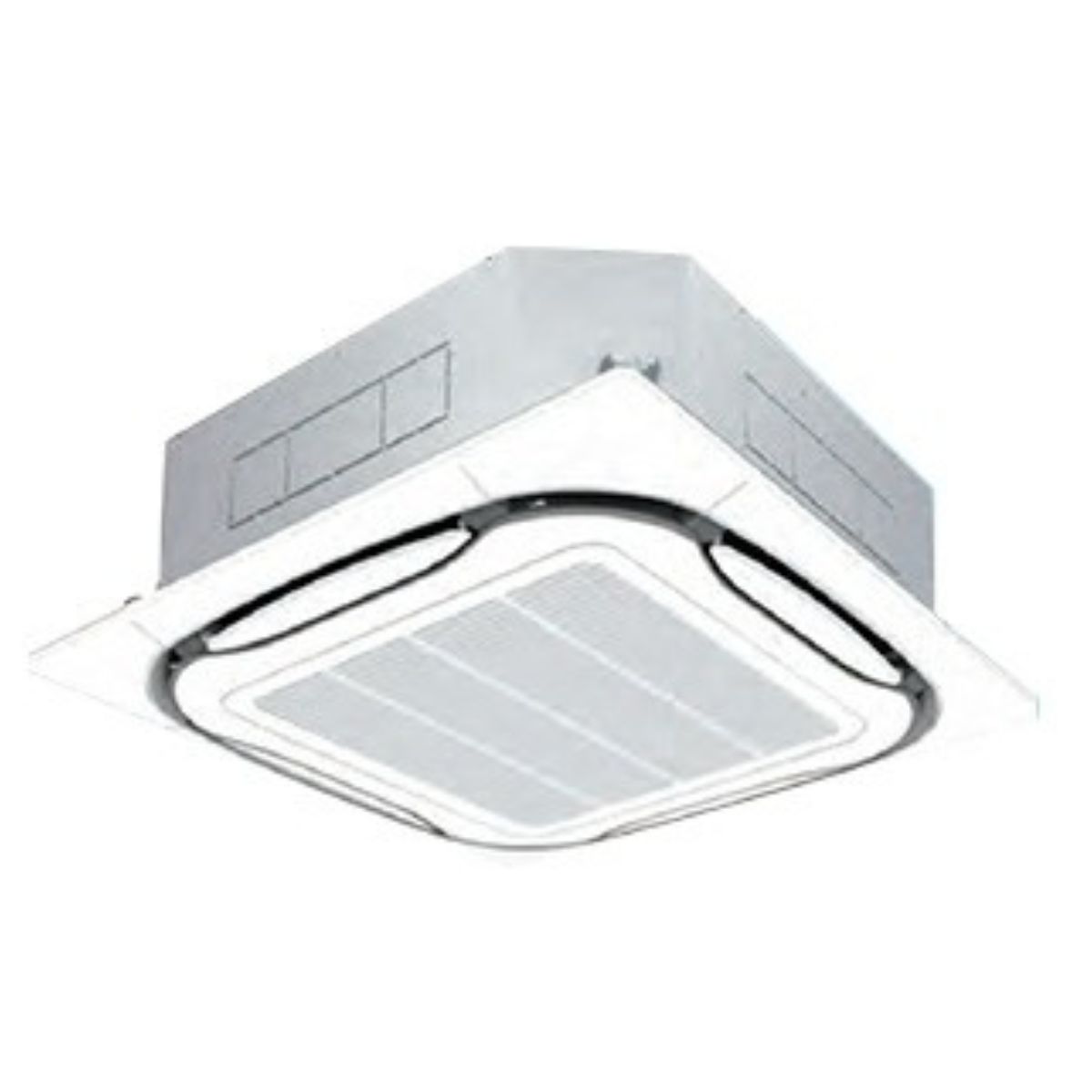

Cassette Hydronic Unit
Upgrade your HVAC system with the Ceiling Mounted Cassette FCU (FCW Series), designed for powerful cooling, uniform airflow, and modern aesthetics. Equipped with a BLDC motor, built-in drain pump, and smart control, it ensures high efficiency and comfort for commercial spaces.
✔ 4-Way Airflow Distribution
✔ Energy Efficient BLDC Motor
✔ Built-in Drain Pump & Float Switch
✔ Compact & Stylish Ceiling Design
Description
Product Overview
The FCW Series Ceiling Mounted Cassette FCU is a high-performance chilled water air conditioning solution designed for uniform air distribution and superior energy efficiency.
Featuring a compact body with a 4-way airflow system, this unit ensures consistent cooling across the entire space—making it ideal for modern commercial interiors.
Equipped with a BLDC motor, built-in drain pump, and advanced heat exchanger, it delivers powerful cooling with minimal noise and optimized energy consumption.
Key Features
- 4-Way Airflow Distribution: Ensures uniform cooling across all corners.
- Energy Efficient BLDC Motor: Delivers high performance with low power consumption.
- Built-in Drain Pump: Pre-installed pump with float switch for easy installation.
- Low Noise Operation: Designed for quiet environments like offices and hotels.
- Anti-Mold Air Filter: Prevents dust accumulation and microbial growth.
- Smart Control: Comes with wireless remote controller.
Technical Specifications
| Category | Details |
|---|---|
| Coil Details | Fin & Tube Heat Exchanger 2 Row Coil Fin Pitch: 1.2 mm Copper Tube: Ø7 mm Design Pressure: 2.1 MPa |
| Fan & Motor | Turbo Fan BLDC Motor Speed Levels: 5 (HH / HM / M / ML / L) |
| Drain System | Built-in Drain Pump Float Switch Included Drain Size: VP25 (ID 25 x OD 32) |
| Panel Details | Size: 950 × 950 × 50 mm Color: Fresh White |
| Operating Conditions | Air Temp: 27°C DB / 19°C WB Water Temp: 7°C / 12°C |
Applications
- Hotels & Hospitality
- Corporate Offices
- Retail Stores
- Hospitals
- Commercial Complexes
Brand
Daikin
